Biohort Panorama

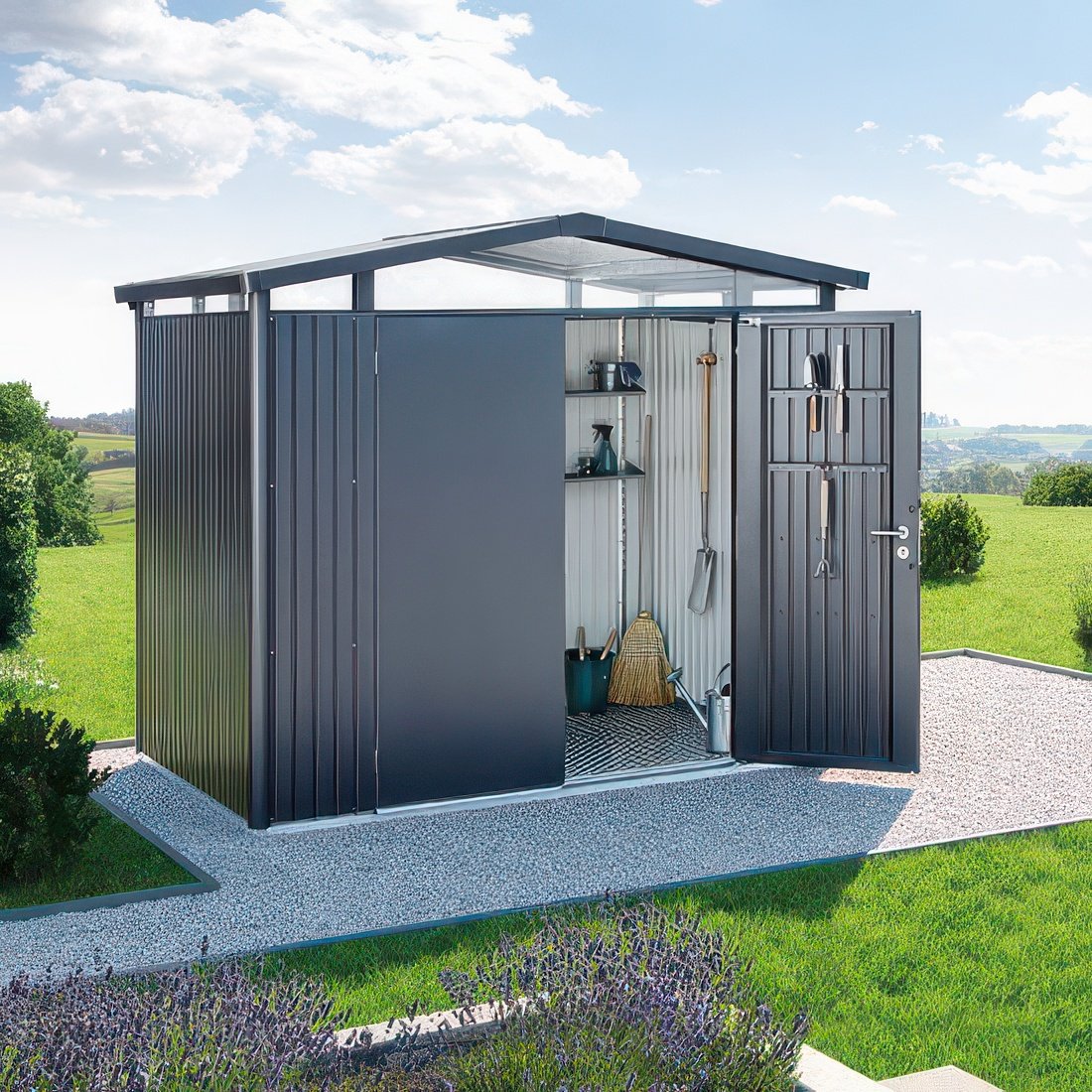

This modern storage shed looks good in any garden panorama

The full encircling skylight constructed from acrylic glass gives the Panorama® Storage Shed a light, modern appearance, allowing this model with its gable roof to fit easily into any garden environment. The proven Biohort quality of materials and workmanship together with the selection of individual equipment options and the range of sizes available make the Panorama® the perfect garden shed to meet high requirements.

Special Features

• 360° acrylic glass panels for optimal light incidence

• Double the sheet steel thickness compared to low-cost providers

• Lockable and rainwater-proof

NEW: Optional window element for even more daylight in the shed

Functionality

• Integrated gutter with a connection for a 1 1/4" hose

• Gutter with integrated leaf traps on both sides

• Comfortable door opening with gas spring

Security

• 3-way locking mechanism complete with stainless steel door handle

• Robust roof construction for a snow load of up to 150 kg/m²

• Storm-proof up to wind force 12 (according to the Beaufort Scale: hurricane)*
  * with professional assembly and anchoring

Quality at its best

• Top quality materials: galvanised, polyamide enamel coated steel plate, screws and hinges made of stainless steel

• Maintenance-free for life

• 20-year guarantee

• Extensive range of standard equipment

Different options

Sizes (cm, exterior dimensions incl. roof overhang). The Panorama® Garden Shed is available in the following sizes:

• P1: 273 x 158 cm ( 3,33 m² )*

• P2: 273 x 198 cm ( 4,33 m² )*

• P3: 273 x 238 cm ( 5,34 m² )*

• P4: 273 x 278 cm ( 6,35 m² )*

• P5: 273 x 318 cm ( 7,36 m² )*

• *effective space

Door opening:

• Standard door (right door hinge): 76 x 182 cm (W x H)

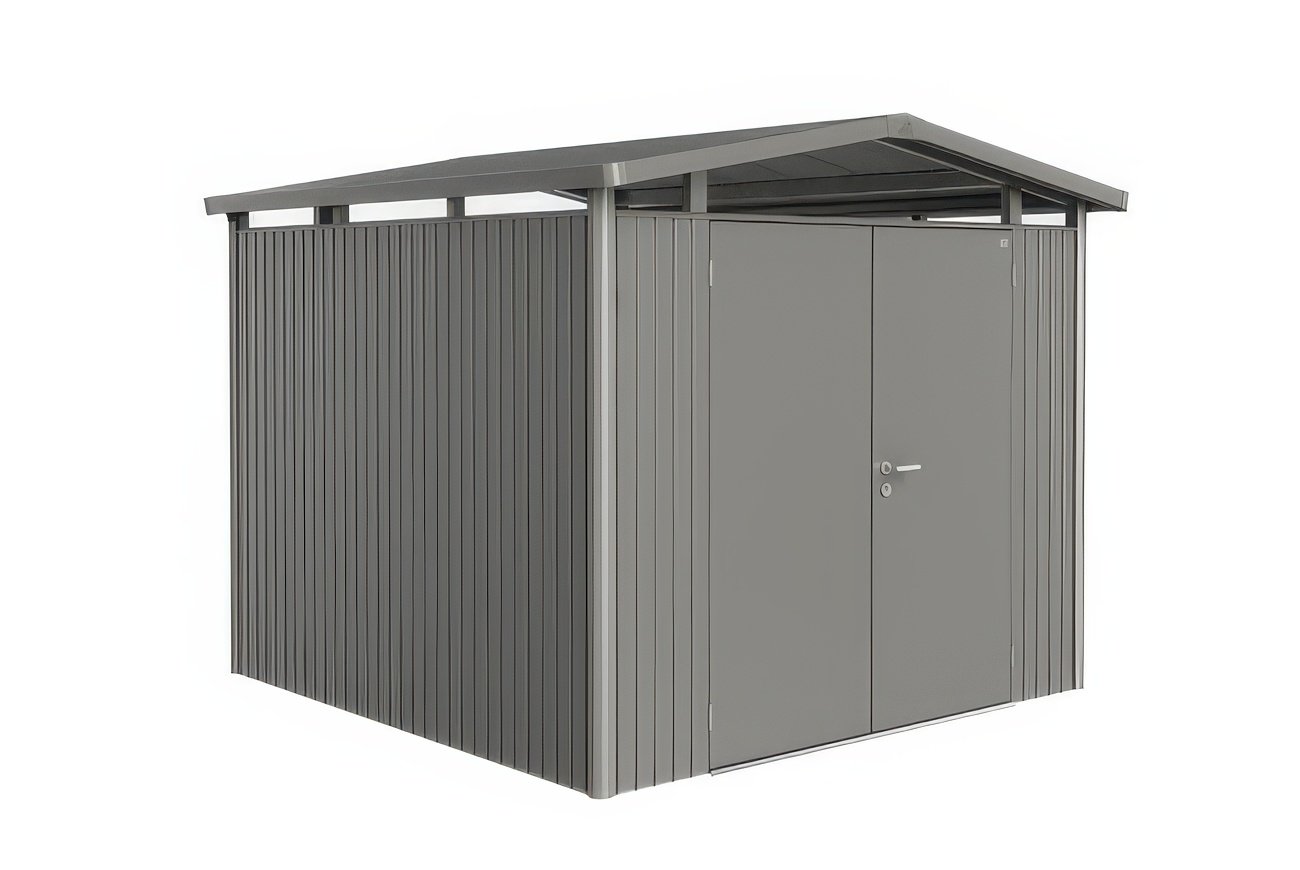

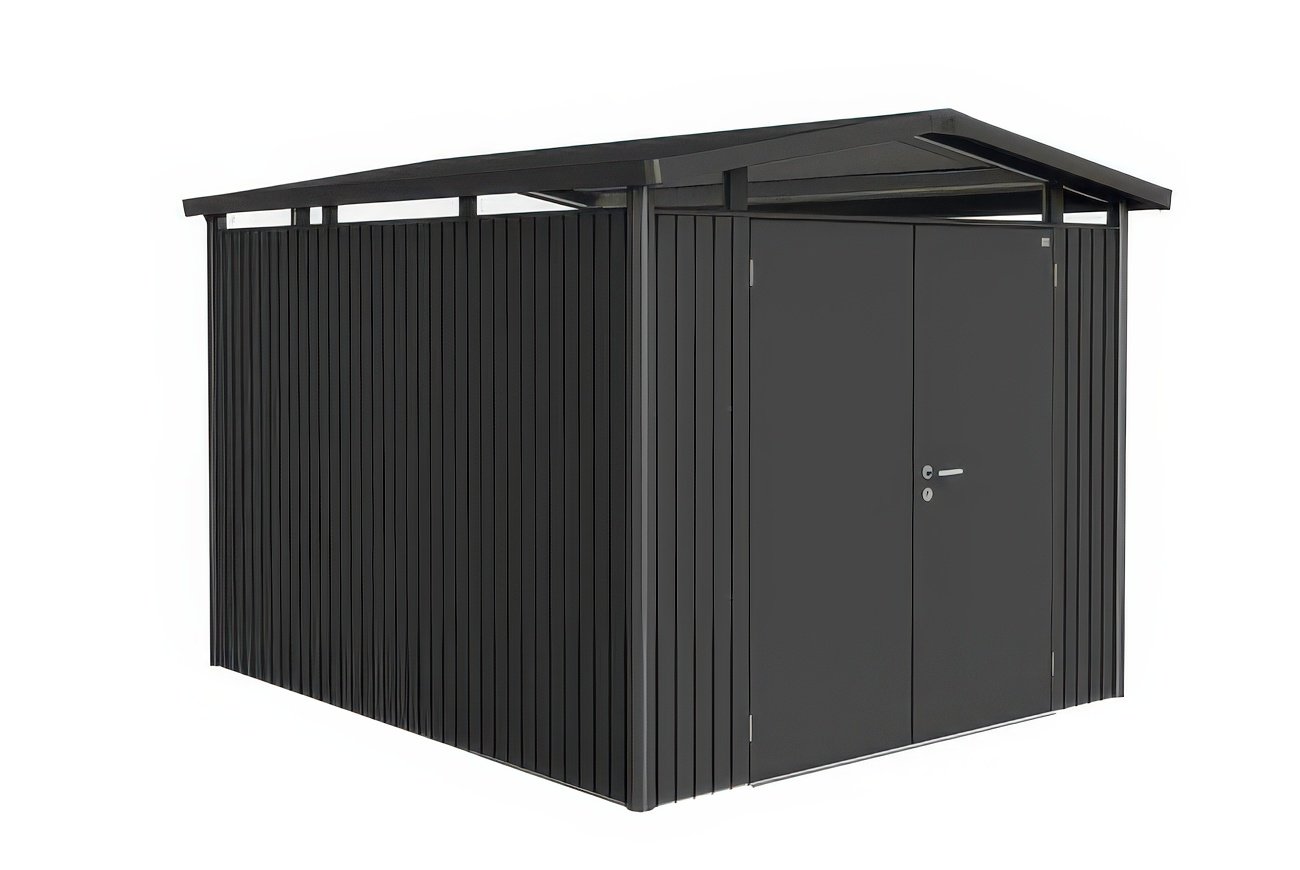

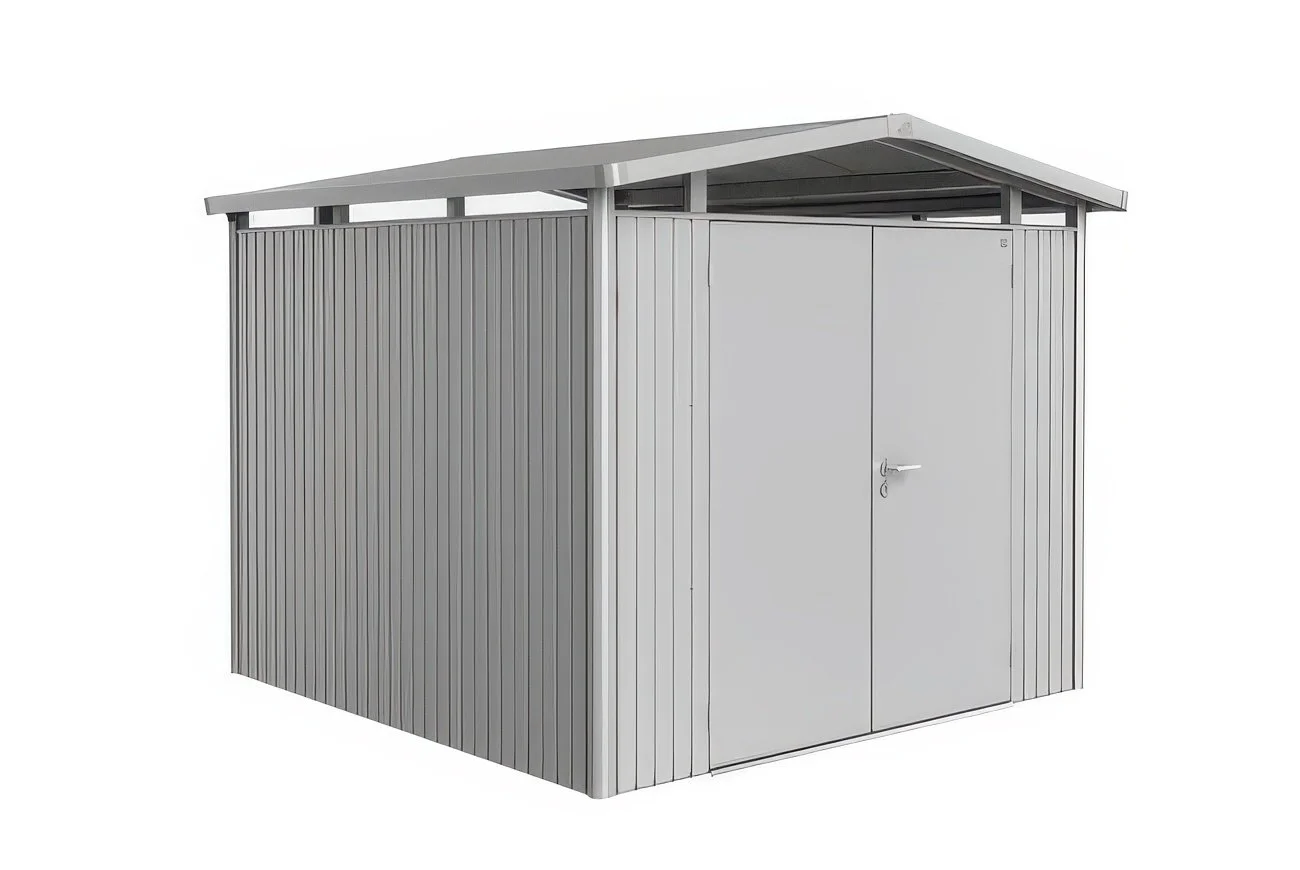

• Double door: 155 x 182 cm (W x H)

Standard Equipment

Stainless steel door handle

• Complete with standard cylinder

• 3-way locking mechanism prevents unwanted entry

• Insurance cover through home insurance policy

• With spare key

• The door construction is extremely robust.

Shelves / support rails. Comprising two shelves (length: 24.5 cm, width: 72 cm) and two support rails.

• Made from galvanised steel plate

• Max. load 15 kg per shelf

• Easy to retrofit

• Additional shelves and support rails are also available separately as accessories.

Tool holders

• Two tool holders on the inside of the door to hang tools and small garden tools

• Max. five tool holders per door panel

Additional tool holders are also available as accessories.

Tool hangers. Designed to hang up spades, rakes and garden hoses, etc. Standard equipment: 4 pcs. Additional tool hangers are available separately as accessories.

Gas spring

• Provides assistance when opening and closing the door

• Holds the door open or closed

Accessories

ALUMINIUM FLOOR FRAME GARDEN SHED

Gives the garden shed the necessary stability even without a concrete foundation. Four plastic corner joints enable precise assembly. The aluminium floor frame measures 40 x 40 mm.

GROUND ANCHOR

If the floor frame is laid directly on a gravel base (approx. 10 cm gravel, without foundation or slabs), ground anchors are required for securing to the ground. These are available as accessories – please refer to the technical data for the number of anchors. Storm resistance must be ensured by the customer for this foundation solution.

ALUMINIUM FLOOR PANEL, GARDEN SHED

Elegant and functional high-quality aluminium chequered plate panel. The floor consists of 3 to 5 segments depending on the size of the shed, incl. connecting rails. The aluminium floor frame is necessary to ensure optimal fitting of the aluminium floor panels. Please note that the aluminium floor panel must be backed with a filler or XPS hard foam panels approx. 2-3 cm thick (not included).

SMARTBASE FOUNDATION PANORAMA

Perfect for solid surfaces
The Biohort SmartBase foundation is the ideal foundation for concrete or paved areas. It consists of high-quality aluminium floor boards, a special foundation frame and height-adjustable feet. Slight ground irregularities of up to 4 cm can be compensated for.

SMARTBASEPLUS FOR GARDEN SHED

The patented system with integrated water barrier consists of aluminium profiles and aluminium floor boards mounted on top of ground screws. Gradients of up to 10% can be easily levelled.
Biohort SmartBasePLUS is a complete solution – an additional aluminium floor frame or an additional aluminium floor panel is not necessary.

ADDITIONAL DOOR GARDEN SHED

‌‌‌For easy access to your garden shed from two sides, you can install an additional door (with stainless steel door handle) in a side wall. The additional garden shed door comes with a 3-way locking mechanism, gas spring, hinges, two tool holders and the necessary metal fittings for the hinge positions. The door hinge is on the right as standard. If you would like the hinge on the left, please add the corresponding item to your shopping basket.

Door opening: 76 x 182 (W x H cm)‌‌‌‌‌ Attention:‌‌‌ With the H1/P1 size, the additional door can only be installed on the broad side.‌‌‌‌

SMARTBASE FOUNDATION ADDITIONAL PACKAGE

Note: In combination with the SmartBase foundation solution, an additional package is required for the additional door.

SMARTBASEPLUS FOUNDATION ADDITIONAL PACKAGE

Note: In combination with the SmartBasePLUS foundation solution, an additional package is required for the additional door.

SURCHARGE FOR STANDARD DOOR WITH LEFT DOOR HINGE

Surcharge for standard door with left door hinge (for HighLine, Panorama, AvantGarde Classic).
No additional door is supplied - only the door hinge on the standard door is changed.
The item can only be ordered in conjunction with a Biohort HighLine, Panorama or AvantGarde garden shed (each with a single door).

WINDOW UNIT GARDEN SHED

The side wall panel with its metal-frame hinged window (plexiglass) brings even more daylight into the garden shed and provides a clear view of the garden (window opening: 50 x 60 cm).

RAINWATER DOWNPIPE SET PANORAMA GARDEN SHED

The rainwater downpipe set for your Biohort garden shed drains the rainwater from the roof. This will reduce washout of concrete slabs and above-average water accumulation during rainfall around the garden shed. The rainwater downpipe set for your garden shed contains two rainwater downpipes, each fitted with an outlet elbow to control the direction of the flow more efficiently. It is made from galvanised, polyamide enamel coated steel plate. The fixing material is supplied.

FLORABOARD

Two rails in the same colour as the garden shed are attached to the outer wall. The flower boxes can be hung on these at a suitable height. Plastic inserts for easier planting are included in the standard delivery.
Exterior dimensions (W x L): 82 x 25 cm, rail height: 188 cm. Two flower boxes incl. two rails are supplied.

TOOL HOLDER

A more effective storage option for your tools with the Biohort tool holder for the inside of the door. One packaging unit contains two tool holders. You can install up to two tool holders per door in the garden shed. Choose the tool holder to match the colour of your garden shed.

GARDEN SHED SUPPORT RAIL (2 PIECES)

The most important facts about the Biohort support rails at a glance:

• DIN support rails with slots to hang shelves, shelf baskets, suspension basket, hook set or folding table

• Choose any position for shelves

• Galvanised for extra-long service life

• Length approx. 185 cm

• Content: Two support rails per pack

• Suitable for all garden sheds except CasaNova, Neo, Europa and Equipment Locker

SHELVES

Choose any position for the shelf. Choose from two different shelf depths. The standard depth is 24.5 cm. For those requiring extra storage space, we have developed a shelf with a depth of 43.5 cm. The standard width is 72 cm. The shelf set for the garden shed is also galvanised for an extra-long service life. Easy to retrofit with load bearing capacity of up to 15 kg per shelf. The set includes only the shelves. The support rails must be ordered separately.

DOOR BASKETS

The door baskets can be easily fixed onto the inside of the door. Ideal for storing garden tools, gloves etc. with in easy reach (2 pieces per package). Size (W x L x H): 37 x 10 x 9.5 cm, load capacity: 1 kg per door basket

SHELF BASKETS

Shelf baskets are suspended in 2 support rails*. Ideal for storing pesticides, lawn seeds, tins and tools. (2 pieces per package). Size (W x L x H): 72 x 16 x 11 cm, load capacity: 3 kg per shelf basket *Support rails not included in the delivery

FOLDING TABLE

Provides a stable working area, can be swiftly folded away.
The Biohort folding table is also galvanised to make it durable. Advantages of the folding table:

• Convenient and space-saving

• Easy to use

• Galvanised steel plate

• The folding table is slotted into two support rails (not included)

• Max. load bearing capacity of 30 kg

• Size: 69 x 58 cm (W x L)

SUSPENSION BASKET

Ideal for storing small objects. Includes wall bracket for hanging on two support rails*.
The basket is made of black polyester mesh. Size (W x L x H): 67 x 34 x 20 cm *Support rails not included.

HOOK SET

Set consists of a combination hook, a handle hook and a shovel hook on a wall bracket, which is hung between two support rails.

TOOL HANGER (4 PIECES)

The Biohort tool hangers are also galvanised to guarantee durability.

THRESHOLD ACCESS RAMP

Only with double door and floor frame - not for SmartBase foundations

• The most important data for the Biohort threshold access ramp at a glance

• For all sizes of the HighLine, Panorama, AvantGarde and Europa garden sheds and the Equipment Locker (only with double door)

• For easy crossing-over with heavy equipment

• Two-piece for the inside and outside

• Required only with aluminium floor frame

• Cannot be used with our SmartBase foundation

• Max. load-bearing capacity 200 kg

• Length: 135 cm

BIKELIFT

From e-mountain bike to racing bike – the Biohort BikeLift pulls any bike vertically up the wall as if by itself. This saves space and is effortless. Hook in the bike, push, and the BikeLift will pull up any bike weighing up to 30 kg.

MOUNTING PANEL FOR SOCKET BIKELIFT

Especially practical for e-bikes! Can be fitted to all variants of the BikeLift®. Without socket.

"BIKEMAX" BICYCLE HANGER

With the BikeMax bicycle hanger you can store bicycles up to 29" in a space-saving way in your Biohort metal garden shed. The height of the hanging hook can also be set to 8 positions. In addition, a locking eyelet for bicycle locks is already integrated.

"BIKEHOLDER" BICYCLE HOLDER

The most important facts about the Biohort BikeHolder bicycle holder at a glance:

• Suitable for garden sheds and HighBoard size 200

• Optimal storage of bicycles thanks to the adjustable retaining clamp

• The base plate is hooked into two support rails (not included) in the garden sheds. The base plate is fixed to the side wall in the HighBoard 200.

• Bicycle held quickly and easily by the tyres

• Max. three bicycles per "bikeHolder"

• W 72 x L 15 x H 33 cm

ELECTRICAL MOUNTING PANEL

Discreetly concealed cable routing and easy installation of switches and sockets (electrical equipment in photo not included).

LED LIGHT

• Battery-powered light with motion sensor and permanent light button

• Magnetic attachment possible

• Incl. USB charging cable

DRILL BIT

Drill bit Ø 40 x 570 mm to drill the holes for the Biohort SmartBasePLUS. Suitable for impact power drills with SDS-MAX adapter Ø 18 mm.
Weight: 2.8 kg.
Note: Impact power drills can be rented from any well-equipped specialist dealer.

Delivery

All Biohort products include VAT & free delivery to any address.
Accessories are priced to be delivered with a main product.
If accessories are ordered separately, they will incur a delivery charge.

End

Download Catalogue

Biohort Panorama Video

Default dimensions: 273 × 158 × 227 cm
Price: 3990 € (incl VAT
